Drum Screen Filter
Drum Screen Filter

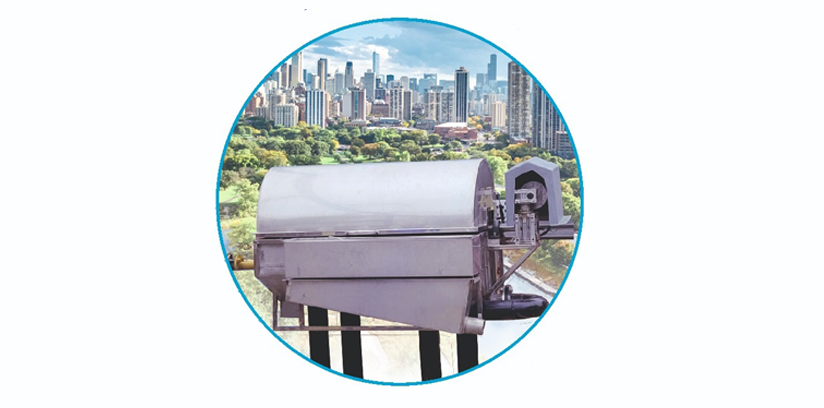

NEERWAY® self-cleaning drum screen filter are compact, and stand-alone units which provide high solid/liquid separation from wastewater discharges of municipal and industries.
Self-cleaning drum screen unit suitable for all applications, available in a wide range of mesh sizes, ideal for industrial & municipal waste water pre-filtration system.
Features and benefits:
- sed for pre-treatment or to relieve the pretreatment effort (capacity to screen and good efficiency in sand and solid removal)
- Fully enclosed, stand-alone unit
- Easy installation (just connect up the pipes and switch on)
- Efficient washing system
- Very simple maintenance as there are very few moving parts (rotation brush shaft only), easy access to cover to direct access to main screen
- Special design of the punch hole screen to prevent any risk of clogging.
- Plug and play: Economical and easy installation (stand-alone unit, no concrete channels or modifications needed)
| Model | NP25 | NP50 | NP100 |
|---|---|---|---|
| Capacity | 25m3/hr. | 50m3/hr. | 100m3/hr. |
| Screen Opening | 3 mm | 3mm | 3mm |
| Screen Area | 0.6m2 | 1.2m2 | 2.4m2 |
| Operating Velocity | 50 m/hr | 50 m/hr | 50m/hr |
| MOC | SS 304 | SS 304 | SS 304 |
| Inlet Connection Size | 80 NB BST’E’ | 100 NB BST’E’ | 125 NB BST’E’ |
| Outlet Connection Size | 100 NB BST’E’ | 125 NB BST’E’ | 150 NB BST’E’ |
| Drain Connection Size | 40 NB BST’E’ | 50 NB BST’E’ | 65 NB BST’E’ |
| Solids Drain Outlet Size | 100 NB Pipe | 100 NB pipe | 100 NB pipe |
| Power Supply | 3 Phase | 3 Phase | 3 Phase |
| Motor | 0.5 HP | 0.5 HP | 1.0 HP |
