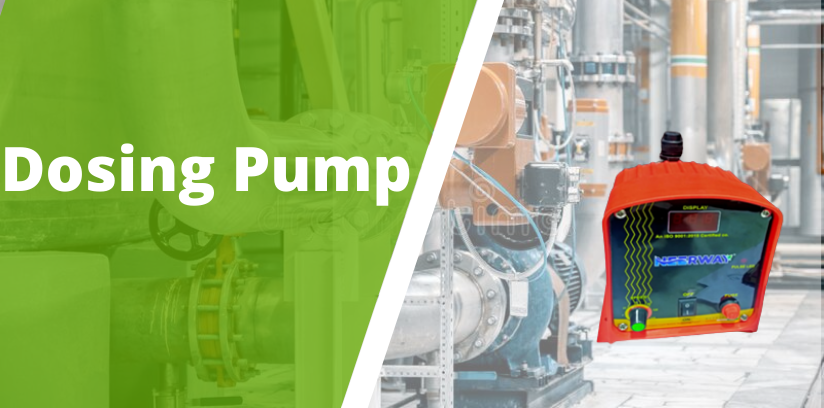

Dosing Pump
Dosing Pump
NEERWAY dosing pump is a simple and reliable diaphragm metering pump which is operating at 230V 50 Hz supply. Design are based on mountable base. The range has been designed to provide a water and waste water treatment complete demands.
Product diaphragm is designed to ensure long life even of product performance. Our state of art electronic circuit is virtually unaffected by tem. EMI & other electric disturbances. All plastic housing is resistant to corrosive chemical agents, reliable operation.
Technical Specification
| 1 | Electrical | 230 v A.C. , 50 Hz |
| 2 | Suction tubing | 6/8 mm |
| 3 | Discharge Tubing | 6/8 mm |
| 4 | Dosing flow rate | 0-6/0-10/0-15/0-20 LPH |
| 5 | Dosing Pressure | 10/8/4/3 kg/cm2 |
| 6 | Stokes/Minutes | Max. 135, min:15 |
| 7 | Fuse | 600m Amp |
| 8 | Stokes Controller | 0-100% |
| 9 | Pulse Controller | 0-10% |
| 10 | Pump Head | PP/PVDF/CFT/SS |
| 11 | Diaphragm | PTFE |
| 12 | Connectors | PP/PVDF/CFT/SS |
| 13 | NRB Ball | Ceramic |
| 14 | Suction Tubing’s | PP/PVDF/CFT/SS |
